Equilateral Pentagon That Tiles The Plane
With Two Non-consecutive Complementary to 180° Angles
A+C = 180° & E = 90°

Non-consecutive angles sum = 180°

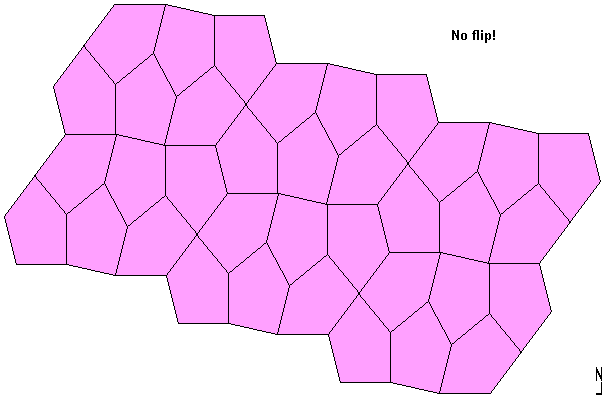

This is an asymmetrical Cairo pentagon that tiles the plane without fliping, with period of 6 elements:

No flip 6-elements tiling

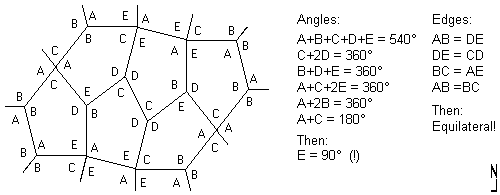

Method of calculation:

No flip 6-elements tiling - Method

Since I found this pentagon, I think that an unknown pentagon that tiles the plane in an unknown way could still exist.
